• Pickup bed includes bed assist step
• Hill Descent Control
• Transfer case, two-speed active, electronic Autotrac with push button control
• Differential, heavy-duty locking rear
• Four wheel drive
• Air filter, high-capacity
• Air filtration monitoring
• Trailer brake controller, integrated
• In-vehicle Trailering App, System includes checklist, trailer maintenance reminders, trailer security alerts, trailer mileage, tow/haul reminder, trailer electrical diagnostics and Trailer Tire Pressure Monitor System module (Includes trailer tire pressure monitoring alert ONLY when (PTT) trailer tire pressure monitor system is factory ordered and sensors are installed.)
• LPO, Chrome recovery hooks (dealer-installed)
• Skid Plates protect the oil pan, front axle and transfer case
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension, Off-Road includes twin-tube shocks
• Steering, Digital Variable Steering Assist This system automatically adjusts steering based on speed, road conditions, and other inputs to reduce driver effort and fatigue.
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 20" (50.8 cm) multi-dimensional Polished aluminum
• Tires, LT275/65R20 all-terrain, blackwall
• Tire, spare LT275/70R18 all-terrain, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color lower
• Bumper, rear body-color with corner steps
• CornerStep, rear bumper
• Assist steps, chromed tubular, 6" rectangular cab length (factory installed)
• Bed Liner, Spray-on, Pickup bedliner with GMC logo (does not include spray-on liner on tailgate due to Black composite inner panel) (Denali logo replaces GMC logo. Not available with any Ship Thrus EXCEPT (VSH), (VTV), (TCH) or (TCE).)
• BedStep, Black integrated on forward portion of bed on driver and passenger side
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Wheelhouse liners, rear
• Moldings, beltline, stainless steel
• Grille (Signature Denali grille with high gloss Black mesh and Chrome inserts.)
• Headlamps, LED reflector (high intensity) with LED turn signals and LED signature Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Fog lamps, LED
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
• LED Cargo Area Lighting located in cargo bed activated with switch on center switch bank or key fob
• Taillamps, LED signature taillight with LED stop and reverse light
• Lamps, Smoked Amber LED roof marker, (LED) (Not available with (YF5) California state emissions requirements.)
• Mirrors, outside power-adjustable vertical trailering with heated and auto-dimming upper glass, (driver and passenger) lower convex mirrors, turn signal indicators, puddle lamps, perimeter lighting, auxiliary lighting, power folding/extending (extends 3.31" [84.25mm])
• Mirror caps, chrome
• Glass, deep-tinted
• Door handles, chrome
• Tailgate, GMC MultiPro Tailgate with six functional load/access features
• Tailgate, gate function manual with EZ Lift includes power lock and release, includes hitch area light
• Tailgate and bed rail protection caps, top

• Audio system, Premium GMC Infotainment System with Navigation and 8" diagonal color touch-screen includes multi-touch display, AM/FM stereo, Bluetooth® streaming audio for music and most phones; featuring Android Auto and Apple CarPlay capability for compatible phones, advanced voice recognition, in-vehicle apps, personalized profiles for infotainment and vehicle settings. Includes greater memory. (Includes (PZ8) Hitch Guidance with hitch view.
• Radio, HD
• SiriusXM Radio with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the All Access package for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the All Access package, you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
• Bose Sound System, premium 7-speaker system with Richbass woofer
• Bluetooth® for phone, connectivity to vehicle infotainment system
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front bucket with center console
• Seat trim, Forge perforated leather-appointed
• Seat adjuster, driver 10-way power including lumbar
• Seat adjuster, passenger 10-way power including lumbar
• Seating, heated driver and front outboard passenger
• Seats, ventilated driver and front passenger
• Driver memory recalls driver "presets" for power driver seat and outside mirrors
• Seats, heated second row outboard seats
• Seat, Up-level Rear with Storage Package, 60/40 folding bench for Crew Cab models, includes full-length bench seat, seatback storage on left and right side, center fold out armrest with 2 cupholders, full cab width under-seat storage, (includes child seat top tether anchor) (Rear seat is leather-appointed.)
• Center Console, floor-mounted with cup holders, cell phone storage, power cord management, hanging file folder capability
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Unique premium carpet. Deleted when LPO floor liners are ordered.)
• Floor mats, carpeted rear (Unique premium carpet. Deleted when LPO floor liners are ordered.)
• Steering wheel, leather-wrapped
• Steering wheel, heated
• Steering wheel audio controls
• Steering column, manual Tilt-Wheel and telescoping
• Steering column, lock control, electrical
• Driver Information Center, enhanced, 8" diagonal multicolor digital display includes analog speedometer and tachometer gauges
• Exterior Temperature Display, located in radio display
• Compass, located in instrument cluster
• Rear Seat Reminder
• Windows, power front, drivers express up/down
• Window, power front, passenger express up/down
• Windows, power rear, express down
• Window, power, rear sliding with rear defogger
• Door locks, power
• Keyless Open and Start
• Remote vehicle starter system
• Universal Home Remote
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Wireless Charging
• Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
• USB ports, 2 (first row) located on instrument panel
• USB Ports (Inside Console with bucket seats), 2 also includes 1 SD card reader and auxiliary jack
• Power outlet, front auxiliary, 12-volt
• Power outlet, rear auxiliary, 12-volt
• USB ports, dual, charge-only (2nd row)
• Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet)
• Air conditioning, dual-zone automatic climate control
• Air vents, rear
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details)

• Automatic Emergency Braking
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, LED signature lighting
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Front and Rear Park Assist, ultrasonic
• HD Rear Vision Camera
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching
• Hitch Guidance with Hitch View with image adjustment, Pan/Zoom/Tilt
• Rear Cross Traffic Alert
• Lane Change Alert with Side Blind Zone Alert
• Following Distance Indicator
• Forward Collision Alert
• Lane Departure Warning
• Safety Alert Seat
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering

DENALI PREFERRED EQUIPMENT GROUP

• includes standard equipment

TECHNOLOGY PACKAGE

• includes (UVS) HD Surround Vision
• (DRZ) Rear Camera Mirror
• (UVN) Bed View Camera and (UV6) Multicolor 15" Diagonal Head-Up Display

DENALI ULTIMATE PACKAGE

• includes (CWM) Technology Package and (CF5) power sunroof

BED VIEW CAMERA

• camera in the CHMSL to show a view of the cargo bed
• includes Two Trailer Camera Provisions

LPO, WHEEL LOCKS, SET OF 4

• (Please note that LPO 20" wheels will include wheel locks without the LPO code (SFE) wheel locks
• LPO.)

TRAILER TIRE PRESSURE MONITOR SENSORS

• includes set of 4 sensors. Sensor functionality requires (U1D) In-vehicle Trailering App to be ordered with the vehicle and installed by the factory. Sensors will be shipped loose with the truck and will need to be installed on trailer by customer. System is capable of monitoring up to 6 wheels. Additional or replacement sensors are available through GM Accessories

• Preferred Equipment Group 5SA: HD Rear Vision Camera; LED Cargo Area Lighting; Remote Vehicle Starter System; 2 USB Ports (1st Row); Power Sliding Rear Window with Defogger; Safety Alert Seat; Electric Rear-Window Defogger; Floor-Mounted Center Console; Unauthorized Entry Theft-Deterrent System; Signature Denali Grille; Compass Located in Instrument Cluster; Electrical Lock Control Steering Column; Driver Alert Package II; 120-Volt Instrument Panel Power Outlet; LED Smoked Amber Roof Marker Lamps; Heated Driver and Front Outboard Passenger Seats; Wireless Charging; X31 Off-Road Package; Steering Wheel Audio Controls; Universal Home Remote; Driver Alert Package I; OnStar and GMC Connected Services Capable; 120-Volt Bed Mounted Power Outlet; Heated 2nd Row Outboard Seats; Power Front Passenger Windows with Express Up/down; 2-Speed Active Transfer Case; Deep-Tinted Glass; Spray-On Pickup Box Bed Liner with Denali Logo; Power Rear Windows with Express Down; Integrated Trailer Brake Controller; Premium GMC Infotainment System Radio with Navigation; Power Windows with Driver Express Up/down; Heated and Ventilated Front Bucket Seats; Manual Tilt-Wheel/telescoping Steering Column; 2nd Row Dual USB Charge-Only Ports; Keyless Open and Start; ProGrade Trailering System; Rear Wheelhouse Liners; 6" Rectangular Chromed Tubular Assist Steps; 12-Volt Rear Auxiliary Power Outlet; 2 USB Ports; Polished Exhaust Tip; Power Door Locks; Chrome Recovery Hooks
• Technology Package: HD Surround Vision with 2 Trailer View Camera Provisions; Multicolor 15" Diagonal Head-Up Display; Keyless Open and Start; Bed View Camera; Rear Camera Mirror
• Denali Ultimate Package: Power Sunroof
• Gooseneck/5th Wheel Package: Gooseneck/5th Wheel Prep Package
• White Frost Tricoat
• Power Sunroof
• Body Color Wheel Arch Moldings
• Bed View Camera
• Wheel Locks (set of 4)
• Trailer Tire Pressure Monitor Sensors
• Apple CarPlay/Android Auto smart device mirroring
• Forward Collision Alert with Automatic Braking
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• Head-up display
• Predictive brake assist system
• Cruise control with steering wheel mounted controls
• Ventilated driver and front passenger seats
• Integrated navigation system
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Heated rear seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Lane Departure Warning
• Rear Cross-Traffic Alert collision warning
• First-row sliding and tilting glass sunroof with express open/close activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• AutoTrac part and full-time 4WD
• Front wireless smart device charging
• Teen Driver restricted driving mode/alerts
• Auxiliary camera
• Keyless Open/Keyless Start with hands-free access and push button start
• Keyfob window control
• Push-button
• Video-feed rearview mirror
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Front mounted camera
• Right side camera
• Pickup box camera
• Left side camera
• Lane Change Alert with Side Blind Zone Alert blind spot warning
• Following Distance Indicator
• Trailer tire pressure and temperature sensors
• Trailer light test
• Trailer light malfunction warning
• Trailer theft alarm
• Dual-zone front climate control
• IntelliBeam auto high-beam headlights
• Immobilizer
• Bose speakers
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only
• External memory control
• Internet radio capability
• 6 USB ports
• Power extendable trailer mirrors

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6600
• Curb Weight - Front (lbs): 3854
• Curb Weight - Rear (lbs): 2788
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4175
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QF9
• Rear Tire Order Code: QF9
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/65R20
• Rear Tire Size: LT275/65R20
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): 3020
• Rear Tire Capacity (lbs): 3373
• Spare Tire Capacity (lbs): 3638
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20" x - TBD -
• Rear Wheel Size (in): 20" x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 250.08
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.1
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.2
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 39.88
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

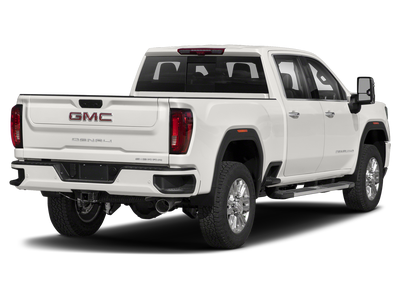

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
